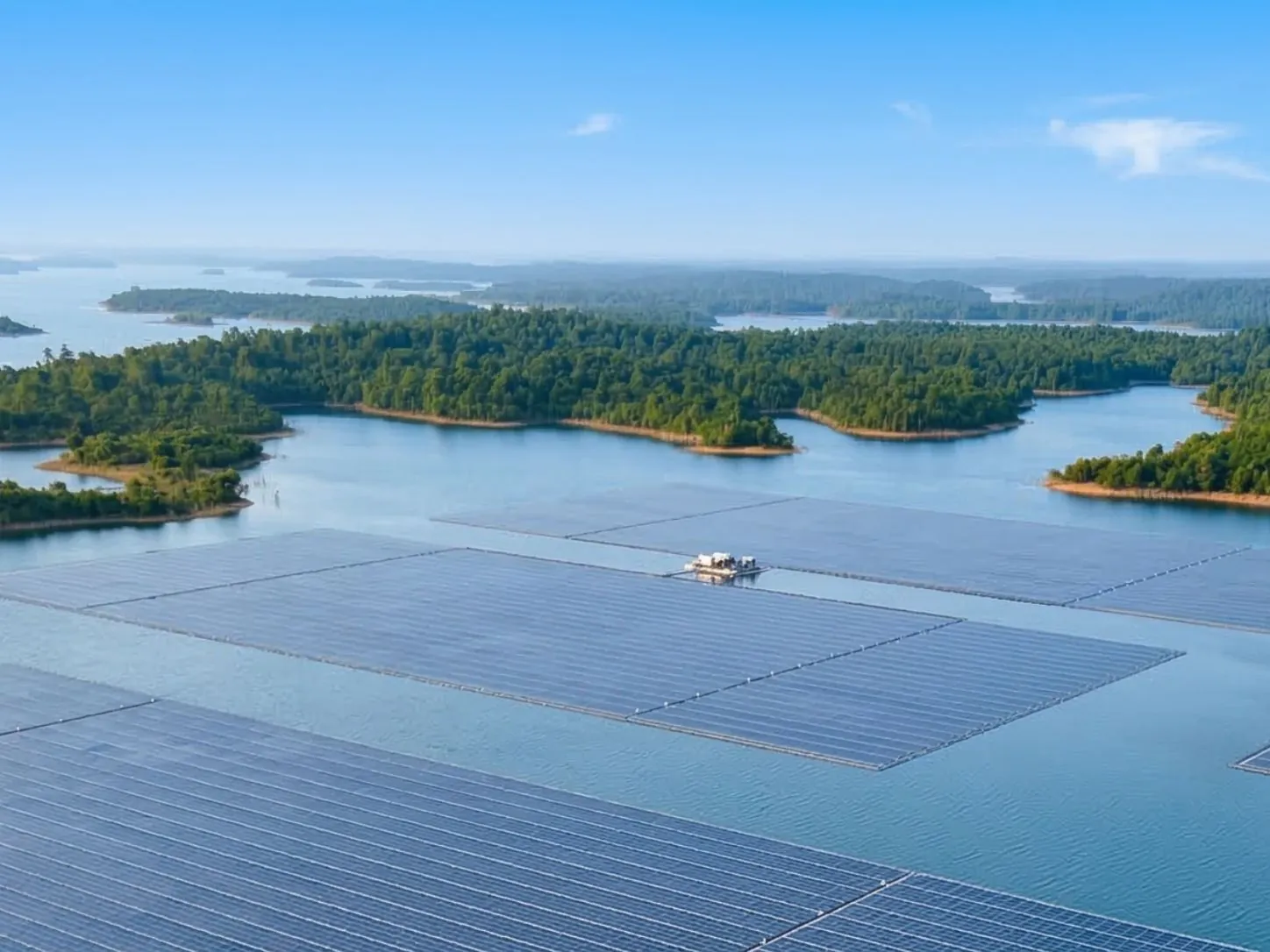

Why the way your team reaches, works on and leaves the array must be designed - not improvised.
A maintenance crew is sent to replace a damaged module in the middle of a floating array. They have the spare module, the tools and the isolation procedure. But the nearest walkway is several rows away. It is very inconvenient to get to the module, but bringing the old one back to shore is even more challenging.
This is not a maintenance issue; this is a design issue. Once the module design, floating design, cabling system and mooring are done, fixing an access issue could require redesigning a lot of elements.
This means that the access must be designed first, considering the actual work that needs to be done by the O&M team - accessing the equipment and going back to shore. Walkways, jetties, work zone must play together.
The Original Situation: How Access Problems Show Up on Site
The following is a composite of issues commonly reported on reservoir-based plants. It is an example and does not refer to any particular project undertaken by Floatex.
- Short walkways: Walkways have been installed for reaching the inverters and combiner boxes, but there are big module blocks in between which can only be accessed by walking over floats which were not intended for foot traffic.
- Seasonal gangway: The shore ramp has been built based on normal water level; in case of drawdown in summer it becomes too steep, and in case of monsoons the landing point changes.
- Cable in the way: DC cables are laid along walkways, which pose a hazard of tripping and block the way for transporting modules.
- Slippery surface: Floats become slippery due to presence of algae, bird droppings and moisture.
- No plan for bad days: the emergency plan assumes calm water and daylight; nobody has checked how a rescue boat would approach without fouling mooring lines.
Each of these is cheap to solve on the drawing board and expensive - sometimes unsafe - to solve after commissioning.
The Reality Check: Common Assumptions vs. Practice
| Common assumption | Reality | Better approach |
|---|---|---|
| "More walkway means better access." | Long walkways add cost and shading but may still miss the places where work is actually done. | Place access according to maintenance tasks, not total walkway length. |
| "Any float can be walked on." | Module floats are designed for module loads, not for people carrying tools and spares. | Define walkable routes and mark non-walkable areas clearly. |
| "The shore connection is a simple ramp." | Water level and array movement change the gap, angle and landing position through the year. | Check gangways and jetties across the full operating water-level range. |
| "PFDs make work on water safe." | Life jackets are necessary, but they cannot take the place of safe pathways, edge protection, and rescue plans. | Design emergency access and rescue alongside the main layout. |
| "Access can be sorted out after commissioning." | Late revisions influence the array's buoyancy, the mooring loads, and cable runs and result in the implementation of makeshift solutions. | Perform a formal access assessment before finalizing the general arrangement. |
Field observations; solutions will depend on site conditions and specific project requirements.
Plan Around Maintenance Tasks, Not Walkway Length
While the walkway over the array provides an access path, it does not mean that it makes the maintenance process easy. It is possible that the O&M crew will have to test the connectors, replace some modules, inspect the float joints, do something in a monitoring box or inspect anchoring points. All these activities require a different level of movement, equipment, workspace and handling.
One possible approach is to put all the common tasks on the general arrangement diagram, indicating the entrance, path, stoppage, workspace and equipment handling. These paths should remain accessible regardless of other works being done on site. Then the task-to-access matrix will show what continuous pathways are required and where the platforms, jetties or boat access would be more suitable.
| Maintenance activity | Question to resolve before layout approval | Possible design response |
|---|---|---|
| Routine module inspection | Can technicians reach every row without stepping on floats not designed for walking? | Clearly marked inspection routes and stopping points |
| Module replacement | Can the team carry a full module without blocking the only exit? | Adequate route clearance and a planned handling area |
| Cable or junction-box work | Can equipment be inspected and electrically isolated safely? | Accessible equipment positions and planned cable supports |
| Mooring inspection | Can connections be checked from the array, or is a boat needed? | Defined inspection points and vessel transfer arrangements |
| Utility-platform servicing | Can people and equipment move safely between structures that move differently? | Engineered connections, suitable landings and movement allowances |
A planning aid - not a mandatory checklist or a set of standard dimensions.
Design Walkways as Working Structures
A walkway is not simply an unobstructed path between modules. The float, connector and walking surface must support the people, tools and spares required for maintenance, including concentrated loads due to stoppages and turns. Two people replacing a module adjacent to a joint impose very different loads from one person walking in a straight line.
Design loads, freeboard, strength and anticipated movements should all be evaluated for every individual project. Widths and load limits for walkways should be based on engineering calculations specific to the project, not general rule of thumb values. Prior to completing the design, four issues should be verified:
- Walking surface: is the surface safe when wet and are tripping hazards minimized?
- Level changes and joints: are there steps or joints that may become dangerous due to movement of the structure?
- Turning, passing and stopping: is there space to turn, pass and stop safely, particularly near open edges?
- Cable crossings: are cables adequately supported to allow inspection without interfering with the path?
These verifications should be done relative to both structural and electrical drawings. A route that appears unobstructed on a plan view drawing may actually be obstructed by module frames, joints or inadequately located cable supports.
Treat Jetties and Shore Connections as Separate Interfaces
Reservoir levels can vary widely across the year, changing the height between shore and array. It is also capable of moving based on the limitations of the system in which it is moored. Gangways which are safe at one depth can be dangerous in other depths; thus, landing positions, joint movements, and connections should be examined.
A jetty does a different job from an array walkway. The site could be a transfer point for crews, staging point for equipment, and landing for maintenance boats. Each activity will require planning of boat access, loading, boarding, storage, and safe paths. Where crews travel by boat, the boat-to-platform transfer must be designed too.
Based on the layout, a continuous connection to shore may be necessary, boat-based access, or a combination of both; however, this will need proper contingency provisions.
Give Technicians a Safe Place to Work
Access to the component is the first step. A small walkway may suffice for inspecting but not allow enough room to replace a module, open up the enclosure, work with tools, or work with a co-worker.
Work areas need to be marked on the drawings surrounding the equipment requiring maintenance, with sufficient room to work on the components without endangering workers from open edges, live equipment and moving connections. Visualize the replacing of a module in a walkway intersection, where one worker holds the new module while the other removes the old one, and no other person can get through.
A larger handling area, a different sequence or an alternative route solves this on paper - before the plant is operating. These structures are just as important as the array. They must ensure that engineers examine the dynamics of such structures in relation to the array and develop a safe route between the structures.
Coordinate Access with Mooring, Electrical Design and Water Conditions
The design of pontoon walkways and other connecting members is altered by their loading due to the way the array moves, which is influenced by the movements of the array itself. The design of access must thus take into account the likely movements from the mooring system design, water depth range, wind and wave action. Flexible joints may be needed between differently moving components. Design of electrical systems is important too.
Connectors, combiner equipment and utility platforms may require isolation, authorised personnel and restricted access during work. The convenience of a walkway does not mean that it is safe to approach live machinery.
The structural, marine, electrical, and O&M departments must reach consensus on these decisions prior to the issue of the procurement drawings. DNV-RP-0584 focuses on floating solar throughout its entire life cycle, while DNV-ST-E309 deals with station-keeping design.
Design the Exit and Emergency Route Before Commissioning
Checking access on a calm day is not enough. What would happen if a crew member who cannot walk needed to be evacuated? Are there alternative paths if the usual path is unavailable? What angle must the rescuers approach at with their boat without disturbing any mooring ropes or cables? The emergency plan should cover:
- Access: can responders reach the work area by an alternative route?
- Recovery: How is one going to be rescued out of the water or evacuated if hurt?
- Communication: Can employees sound the alarm and direct rescuers coming from far-off regions of the plant?
- Operating constraints: What wind, wave, lightning or visibility conditions prevent any operation or access?
The rescue plan should list the equipment, trained rescue personnel and their duties. Personal Floatation Devices and training are key but will not compensate for good planning of the route and means of evacuation.
Use a Pre-Construction Access Review Gate
Access should be reviewed and approved before the general arrangement is frozen - by walking through realistic maintenance tasks from start to finish, not just checking the walkway layout.
| Review gate | Evidence the design team should provide |
|---|---|
| Shore entry and transfer | Landing arrangements checked against operating water levels and expected array movement |
| Walkway performance | Defined design loads, routes, clearances, surfaces and structural connections |
| Working positions | Task-based locations with space for tools, removal and replacement |
| Mechanical and electrical interfaces | Coordinated drawings of mooring, cables, utility platforms and access links |
| Rescue and operating limits | Site-specific evacuation plan, access restrictions and assigned emergency roles |
A proposed planning framework. Final acceptance criteria must follow applicable engineering and safety requirements.
One simple test: simulate removing a module from the least accessible part of the array, tracing the full route from shore to work area and back. Then repeat it assuming one worker needs help. Any resulting changes to module spacing, transfer platforms, buoyancy or routes should be documented before construction, when they are still easy to make.
Our Approach at Floatex Solar
At Floatex Solar, our access systems include array walkways, shore-based jetty platforms, structure-to-structure connections and independent standways. We treat these as building blocks, selected and arranged around each site's maintenance tasks, water-level range and safety needs - rather than a fixed package applied to every project.
Access Is Part of the Plant's Long-Term Design
Generation, structural performance and electrical integration rightly get most of the attention in floating solar design. But none of them guarantees that the finished plant can be inspected and repaired efficiently.
The goal is not maximum walkway coverage. It is a plant where every routine task, every repair and every emergency response can be carried out safely, without last-minute changes or improvised solutions over water - for the whole of its operating life.
